This platform leverages cloud-native technologies to build a flexible and efficient data pipeline. It supports various data ingestion, processing, and storage needs, enabling real-time and batch data analytics. The architecture is designed to handle structured, semi-structured, and unstructured data from diverse external sources.

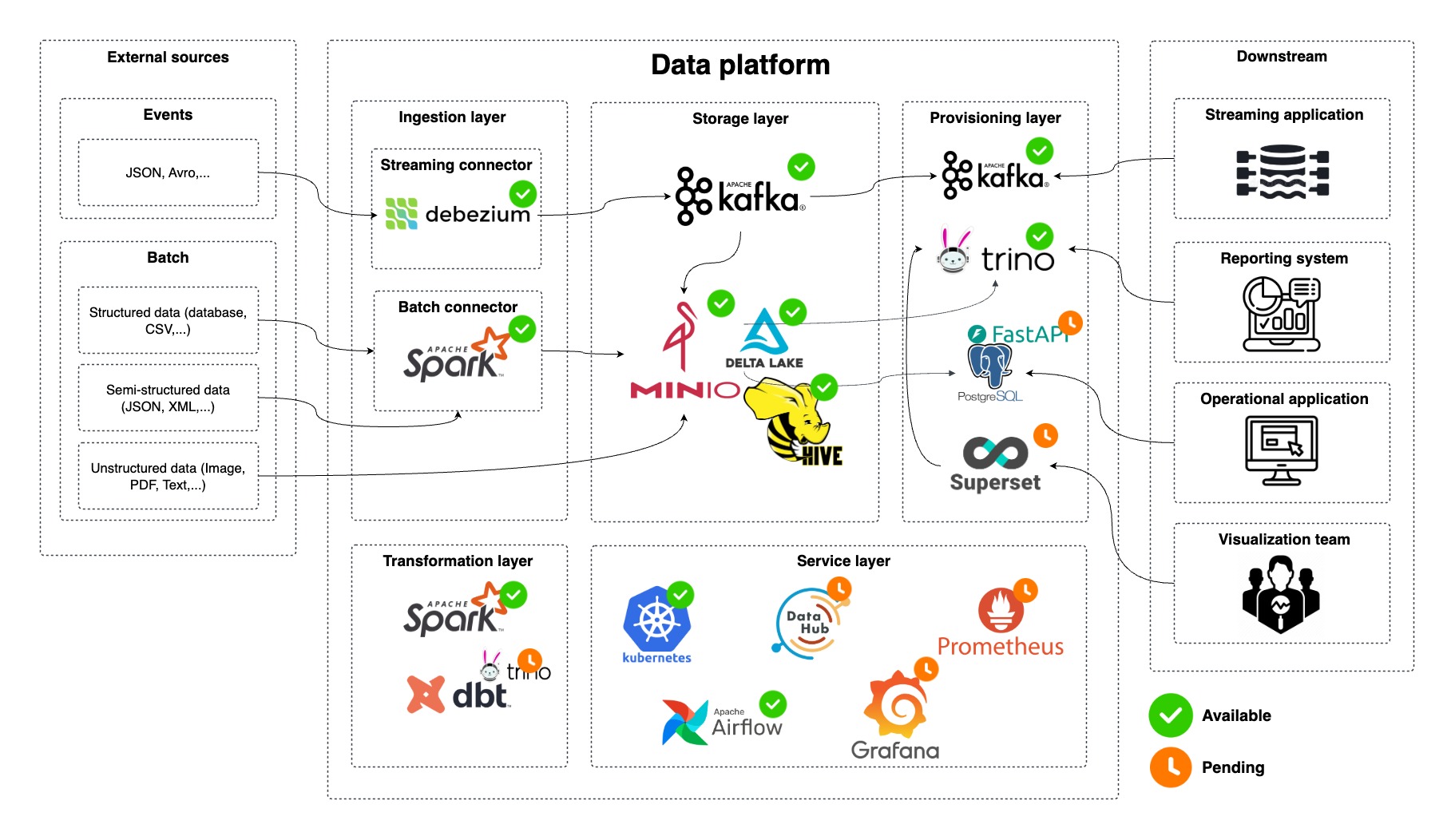

Architecture
The platform is organized into distinct layers:
- Ingestion Layer: Captures data from external sources using Debezium for streaming and Spark for batch.
- Storage Layer: Stores streaming data in Kafka and streaming/batch data in MinIO, there is a Hive metastore on top of the object storage with Delta Lake tables.
- Transformation Layer: Transforms and processes data using Spark, Trino, and dbt.
- Provisioning Layer: Expose data for multiple downstream applications through various connectors.
- Service Layer: Resource management, orchestration, data governance, and monitoring.
Getting Started
# Create Kubernetes namespace
k create namespace data-platform
Install MinIO
# Add repository
helm repo add minio-operator https://operator.min.io
helm search repo minio-operator
helm repo update
# Install client
brew install minio/stable/mc
# Download operator config for reference
curl -sLo infra/services/minio/operator/values.yaml https://raw.githubusercontent.com/minio/operator/master/helm/operator/values.yaml
# Download tenant config for reference
curl -sLo infra/services/minio/tenant/values.yaml https://raw.githubusercontent.com/minio/operator/master/helm/tenant/values.yaml
# Make sure you configure `externalCertSecret` and `requestAutoCert` so that the server use Self-signed certificate instead of auto-generated certificate
# Install server
make -f scripts/minio/Makefile generate-self-signed-cert
make -f scripts/minio/Makefile register-self-signed-cert
make -f scripts/minio/Makefile install
# Port forward for MinIO service and set up alias, & is to run it in background
k port-forward service/myminio-hl 9000 -n data-platform &
k port-forward service/myminio-console 9443 -n data-platform &
# Because we are using the Self-signed certificate, hence specify flag --insecure here
# Alias for Tenant service
mc alias set myminio https://localhost:9000 minio minio123 --insecure
# Create a bucket
mc mb myminio/mybucket --insecure
mc mb myminio/hive-warehouse --insecure
Install Spark cluster
# Add repository
helm repo add spark-operator https://kubeflow.github.io/spark-operator
helm search repo spark-operator
helm repo update
# Download Spark config for reference
curl -sLo infra/services/spark/values.yaml https://raw.githubusercontent.com/kubeflow/spark-operator/refs/heads/master/charts/spark-operator-chart/values.yaml
# Install Spark Operator and build Spark application base image
make -f scripts/spark/Makefile install
make -f scripts/spark/Makefile build-spark-application-dockerfile
# Running a Spark application to write file to MinIO with Delta Lake table format
make -f scripts/spark/Makefile build-spark-write-minio-dockerfile
k apply -f pipeline/spark-write-minio/job.yaml
# Release Docker images
make -f scripts/spark/Makefile release-docker-images
# Go to https://localhost:9443/browser/mybucket/user_data to view data files
Install Airflow
helm repo add apache-airflow https://airflow.apache.org
helm search repo apache-airflow
helm repo update
# Download Airflow config for reference
curl -sLo infra/services/airflow/operator/values.yaml https://raw.githubusercontent.com/apache/airflow/refs/heads/main/chart/values.yaml
# Install Airflow Operator
make -f scripts/airflow/Makefile build-custom-dockerfile
make -f scripts/airflow/Makefile release-docker-images
make -f scripts/airflow/Makefile install
# Port forward for Airflow webserver
k port-forward service/airflow-operator-webserver 8080 -n data-platform &
Install Hive metastore
# Download Postgres config for reference
curl -sLo infra/services/hive/database/values.yaml https://raw.githubusercontent.com/bitnami/charts/refs/heads/main/bitnami/postgresql/values.yaml
# Install Hive metastore
make -f scripts/hive/Makefile build-metastore-custom-dockerfile
make -f scripts/hive/Makefile build-schematool-custom-dockerfile
make -f scripts/hive/Makefile release-docker-images
make -f scripts/hive/Makefile install
# Port forward for Hive metastore database and thrift
k port-forward service/hive-metastore-postgres-postgresql 5432 -n data-platform &
k port-forward service/hive-metastore 9083 -n data-platform &
# export HADOOP_ROOT_LOGGER=DEBUG,console && hadoop fs -ls s3a://hive-warehouse/
# hadoop org.apache.hadoop.conf.Configuration
# hdfs getconf -confKey [key]
# Create a Hive table to test Hive metastore
make -f scripts/spark/Makefile build-spark-create-hive-table-dockerfile
k apply -f pipeline/spark-create-hive-table/job.yaml
Install Kafka
# Download Kafka config for reference
curl -sLo infra/services/kafka/operator/values.yaml https://raw.githubusercontent.com/bitnami/charts/refs/heads/main/bitnami/kafka/values.yaml
# Install Kafka
make -f scripts/kafka/Makefile generate-self-signed-cert-keystore-truststore
make -f scripts/kafka/Makefile register-self-signed-cert-keystore-truststore
make -f scripts/kafka/Makefile install
# Port forward for Kafka service
k port-forward service/kafka-operator 9092 -n data-platform &
# Create a client pod for accessing Kafka cluster data
make -f scripts/kafka/Makefile create-kafka-client-pod
kafka-console-producer.sh \
--producer.config /tmp/client.properties \
--bootstrap-server kafka-operator.data-platform.svc.cluster.local:9092 \
--topic test
# Consume those messages
kafka-console-consumer.sh \
--consumer.config /tmp/client.properties \
--bootstrap-server kafka-operator.data-platform.svc.cluster.local:9092 \
--topic test \
--from-beginning
# List Kafka topics
kafka-topics.sh \
--command-config /tmp/client.properties \
--bootstrap-server kafka-operator.data-platform.svc.cluster.local:9092 \
--list
Install sources
This is the installation of source systems with databases so that we can integrate the CDC from these to our datalake with Kafka Connector
# Install Postgres source
make -f scripts/sources/Makefile install-postgres
# Port forward for Postgres source
k port-forward service/postgres-source-postgresql 5432 -n data-platform &
Install Kafka Connect
make -f scripts/kafka-connect/Makefile install
# Port forward for Kafka Connect REST endpoint
k port-forward service/kafka-connect-operator-cp-kafka-connect 8083 -n data-platform &
# List all installed plugins
curl -sS localhost:8083/connector-plugins
# Create Postgres connector
make -f scripts/kafka-connect/Makefile create-postgres-connector
make -f scripts/kafka-connect/Makefile get-all-connectors
Install Trino
# Add repository
helm repo add trino https://trinodb.github.io/charts
helm search repo trino
helm repo update
# Download operator config for reference
curl -sLo infra/services/trino/operator/values.yaml https://raw.githubusercontent.com/trinodb/charts/refs/heads/main/charts/trino/values.yaml
# Install Trino
make -f scripts/trino/Makefile build-trino-custom-dockerfile
make -f scripts/trino/Makefile release-docker-images
make -f scripts/trino/Makefile install
# Port forward for Trino
k port-forward service/trino-operator-trino 8089:8080 -n data-platform &
